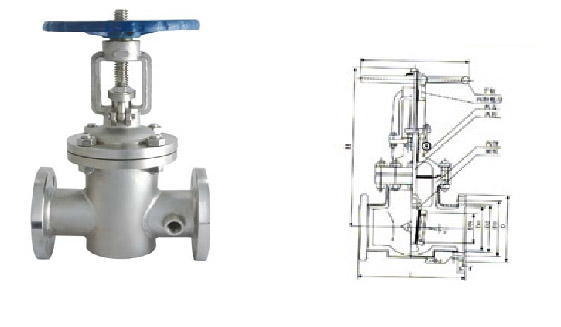

BZ41H/W不銹鋼保溫閘閥 |
應用規范:
1、設計制造按GB12234-89
2、結構長度按GB12221-89
3、法蘭尺寸按JB/T79-94
4、閥門檢查和試驗按GB13927
主要零件材質
|
零件名稱 |
ZG1Cr18Ni9Ti系列 |
ZG00Cr18Ni10系列 |
ZG1Cr18Ni12Mo2Ti系列 |
ZG00Cr17Ni14Mo2系列 |
WCB系列 |
|
閥體/閥蓋 |
ZG1Cr18Ni9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
WCB |
|
閘板 |
ZG1Cr18NI9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
1Cr13 |
|
閥桿 |
1Cr18Ni9Ti |
ooCr18Ni10 |
1Cr18Ni12Mo2Ti |
ooCr17Ni14Mo2 |
1Cr13 |
|
填料 |
PTFE編織 |
PTFE編織 |
PTFE編織 |
PTFE編織 |
石墨Graphite |
|
墊片 |
304L+PTFE |
304L+PTFE |
316L+PTFE |
316L+PTFE |
石墨+304
Graphite+304 |
|
壓蓋 |
ZG1Cr181Ni10 |
ZG00Cr18Ni10 |
ZG1Cr18Ni12Mo2Ti |
ZG00Cr17Ni14Mo2 |
WCB |
|
填料壓環 |
1Cr18Ni9Ti |
00Cr18Ni10 |
1Cr18Mi12Mo2Ti |
00Cr17Ni14Mo2 |
1Cr13 |
|
螺栓 |
1Cr171Ni2 |
1Cr171Ni2 |
1Cr171Ni2 |
1Cr171Ni2 |
35CrMoA |
|
螺母 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
45 |
1.6MPa主要連接尺寸
|
尺寸
|
DN |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
mm |
200 |
250 |
265 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
|
H |
mm |
310 |
358 |
372 |
435 |
500 |
614 |
674 |
818 |
969 |
1145 |
|
W |
mm |
200 |
240 |
240 |
280 |
300 |
320 |
360 |
400 |
450 |
560 |
2.5MPa主要連接尺寸
|
尺寸
|
DN |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
mm |
200 |
250 |
265 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
|
H |
mm |
358 |
373 |
435 |
500 |
614 |
674 |
818 |
969 |
1145 |
1145 |
|
W |
mm |
240 |
240 |
280 |
300 |
320 |
360 |
400 |
450 |
560 |
640 |
4.0MPa主要連接尺寸
|
尺寸
|
DN |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
mm |
200 |
250 |
280 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
|
H |
mm |
358 |
373 |
435 |
500 |
614 |
674 |
818 |
969 |
1145 |
1145 |
|
| |
|
| |
|
 |
 |
